首頁進口晶振XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

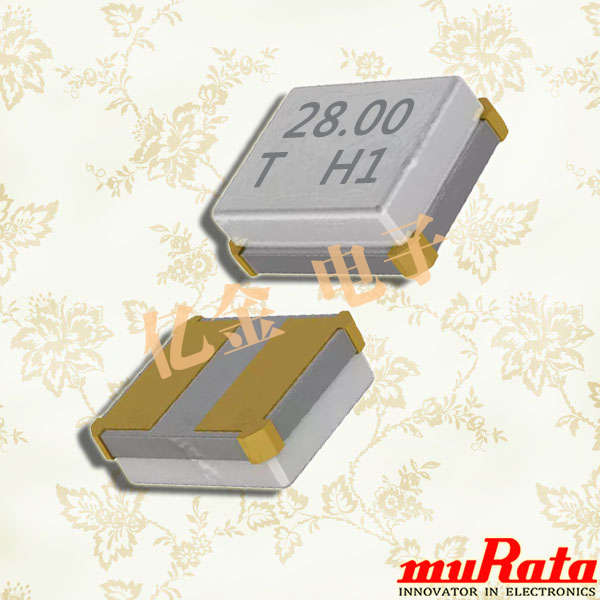

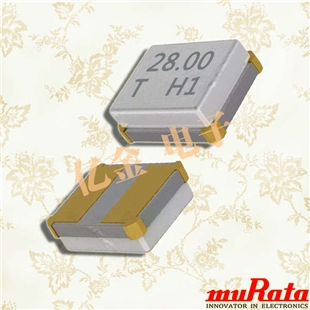

XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

  • 頻率：16 MHz
  • 尺寸：2.50mm x 2.00mm
  • 應　用： XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振,該晶振遵循嚴格的車載應用標準,在設計和生產過程中充分考量車載環境的特殊性.其可承受-40℃至+125℃的寬溫工作范圍,能輕松應對汽車行駛過程中的高低溫波動.


XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振
XRCHA16M000F0A01R0是一款專為車載電子領域量身打造的無源晶振,不僅具備16MHz標準工作頻率,更將頻率精度嚴格控制在±10ppm(具體數值以官方產品規格書為準)的車載級高標準范圍內,這一精度水平可滿足車載電子系統對時鐘信號"低誤差,高同步"的核心需求.作為典型的無源器件,它無需外部獨立電源驅動,僅依靠車載網絡晶振電路中MCU(微控制單元)或?qū)Ｓ抿?qū)動芯片提供的激勵信號,即可通過內部壓電晶體的機械振動產生穩定振蕩,進而輸出精準時鐘信號.這種特性使其能與車載電子系統中多樣化的驅動電路(如車載ECU的時鐘驅動模塊,傳感器信號處理電路)實現高效適配,無需額外設計供電回路,為車載設備提供基礎且關鍵的時鐘信號支撐,確保各電子部件的協同運轉.


XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振
原廠型號 Originalmodel： XRCHA16M000F0A01R0 品牌brand： Murata村田晶振
品牌brand： 村田晶振 ESR（等效串聯電阻）Resistance) 100 Ohms
型號名稱 Modelname： XRCHA 溫度OperatingTemperature -40°C~125°C
Type系列： MHz Crystal 腳位Termination： 2pad
頻率 frequency： 16 MHz 封裝類型PackageType： 2-SMD
FrequencyStability頻率穩定度 ±100ppm 高度PackageHeight： 0.80mm
frequencytolerance頻率容差 ±100ppm 最小包裝數MPQ： 3000
Loadcapacitance  負載電容 8pF 包裝Packaging：  TapeandReel

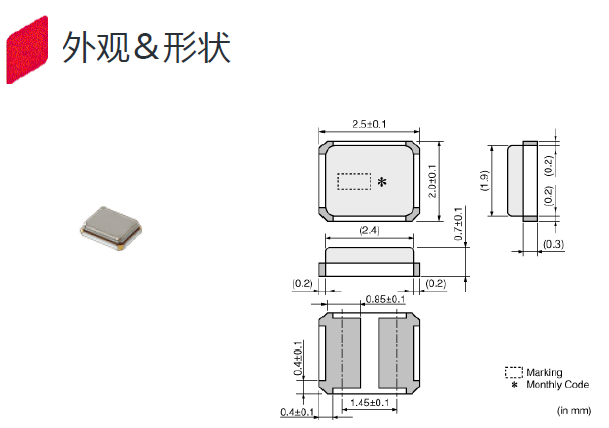

Size/Dimension尺寸 2.50mm x 2.00mm 安裝方式MountingStyle：   SurfaceMount


XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振

XRCHA16M000F0A01R0,XRCHA無源晶振,車載應用晶振
XRCGB25M000F3M00R0 Murata村田晶振 XRCGB 25 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB 27.12 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB 24 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H01R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 8pF 60 Ohms
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB 32 MHz ±10ppm ±10ppm 6pF 60 Ohms
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB 25 MHz ±35ppm ±35ppm 6pF 100 Ohms
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB 24 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB 48 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB 24 MHz ±30ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB 27.12 MHz ±40ppm ±30ppm 10pF 80 Ohms
XRCGB25M000F3M18R0 Murata村田晶振 - 25 MHz ±40ppm ±30ppm 12pF 80 Ohms
XRCGB32M000F2P01R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 8pF 100 Ohms
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB25M000F2P02R0 Murata村田晶振 - 25 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB 27.12 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB 25 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB24M000F2P01R0 Murata村田晶振 - 24 MHz ±20ppm ±20ppm 8pF 150 Ohms
XRCGB27M120F3M13R0 Murata村田晶振 - 27.12 MHz ±40ppm ±30ppm 10pF 60 Ohms
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 8pF 70 Ohms
XRCGB32M000FBH50R0 Murata村田晶振 - 32 MHz ±10ppm ±15ppm 10pF 60 Ohms
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB 24 MHz ±20ppm ±20ppm 8pF 60 Ohms
XRCGB16M000FXN00R0 Murata村田晶振 - 16 MHz ±40ppm ±40ppm 6pF 200 Ohms
XRCGB32M000F1H02R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB32M000F1H19R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 6pF 50 Ohms
XRCGB40M000F5A00R0 Murata村田晶振 - 40 MHz ±65ppm ±50ppm 6pF 70 Ohms
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB 24 MHz ±35ppm ±30ppm 6pF 120 Ohms
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB 27.12 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB 25 MHz ±35ppm ±30ppm 8pF 100 Ohms
XRCGB48M000F5A00R0 Murata村田晶振 - 48 MHz ±65ppm ±50ppm 6pF 60 Ohms
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD 25 MHz ±35ppm ±15ppm 6pF 100 Ohms
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA 20 MHz ±100ppm ±100ppm 8pF 80 Ohms
XRCGB27M120F0L00R0 Murata村田晶振 - 27.12 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB32M000F0L00R0 Murata村田晶振 - 32 MHz ±50ppm ±100ppm 6pF 100 Ohms
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±25ppm 6pF 150 Ohms
XRCGB38M400F4M00R0 Murata村田晶振 - 38.4 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB50M000F4M00R0 Murata村田晶振 - 50 MHz ±40ppm ±45ppm 6pF 65 Ohms
XRCGB32M000F3M00R0 Murata村田晶振 - 32 MHz ±40ppm ±30ppm 6pF 100 Ohms
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P02R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 10pF 100 Ohms
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB 30 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F2P02R0 Murata村田晶振 - 27.12 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB32M000F2P26R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 5pF 70 Ohms
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB 31.25 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F3G00R0 Murata村田晶振 - 27.12 MHz ±50ppm ±30ppm 6pF 150 Ohms
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB 16 MHz ±40ppm ±40ppm 8pF 200 Ohms
XRCGB27M600F2C00R0 Murata村田晶振 - 27.6 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCGB24M000F1H01R0 Murata村田晶振 - 24 MHz ±10ppm ±10ppm 8pF 80 Ohms
XRCGB26M000F1H02R0 Murata村田晶振 - 26 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB24M000F1H70R0 Murata村田晶振 - 24 MHz ±20ppm ±10ppm 6pF 80 Ohms
XRCGB32M000F1H83R0 Murata村田晶振 - 32 MHz ±15ppm ±10ppm 9pF 60 Ohms
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE 27 MHz ±35ppm ±15ppm 6pF 80 Ohms
XRCGB26M000F3A00R0 Murata村田晶振 - 26 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE 26 MHz ±35ppm ±15ppm 8pF 80 Ohms
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD 20 MHz ±45ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB 24 MHz ±35ppm ±20ppm 8pF 120 Ohms
XRCGB27M120F3P00R0 Murata村田晶振 - 27.12 MHz ±20ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB 26 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD 32 MHz ±15ppm ±10ppm 9pF 40 Ohms
