首頁進口晶振XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振

XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振

  • 頻率：20 MHz
  • 尺寸：2.00mm x 1.60mm
  • 應　用： XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振,采用高品質壓電晶體材料,結合精密的結構設計,具備優秀的頻率穩定性.無論是溫度變化,電壓波動還是機械振動干擾,其頻率偏差均能控制在極小范圍,確保設備時鐘信號的連續性...


XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振
該晶振憑借日本村田晶振專屬的耐高溫材料配方與特殊封裝工藝,具備遠超普通晶振的耐高溫特性,其工作溫度范圍可穩定覆蓋-40℃的低溫極限至+125℃的高溫峰值(具體參數需以官方最新規格書為準).這一性能使其在極端環境中展現出極強的適應性:例如在汽車發動機艙內,當發動機運轉產生的熱量使周邊溫度升至100℃以上時,該晶振仍能保持穩定振蕩,確保車載ECU對發動機工況的精準調控,在工業高溫生產車間,如鋼鐵冶煉設備的控制模塊中,即便環境溫度長期維持在90℃左右,晶振也不會出現頻率漂移或功能失效,有效避免因元器件故障導致的生產中斷.此外,在戶外太陽能逆變器,高溫環境下運行的醫療設備專用晶振等場景中,其耐高溫優勢同樣能為設備持續穩定工作提供關鍵保障,徹底解決傳統晶振在高溫工況下"壽命短,易故障"的痛點.


XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振
原廠型號 Originalmodel： XRCGE20M000F3A1AR0 品牌brand： Murata村田晶振
品牌brand： Murata村田晶振 ESR（等效串聯電阻）Resistance) 150 Ohms
型號名稱 Modelname： XRCFD 溫度OperatingTemperature -40°C~125°C
Type系列： MHz Crystal 腳位Termination： 4pad
頻率 frequency： 20 MHz 封裝類型PackageType： 4-smd
FrequencyStability頻率穩定度 ±45ppm 高度PackageHeight： 0.70mm
frequencytolerance頻率容差 ±30ppm 最小包裝數MPQ： 3000
Loadcapacitance  負載電容 6pF 包裝Packaging：  TapeandReel

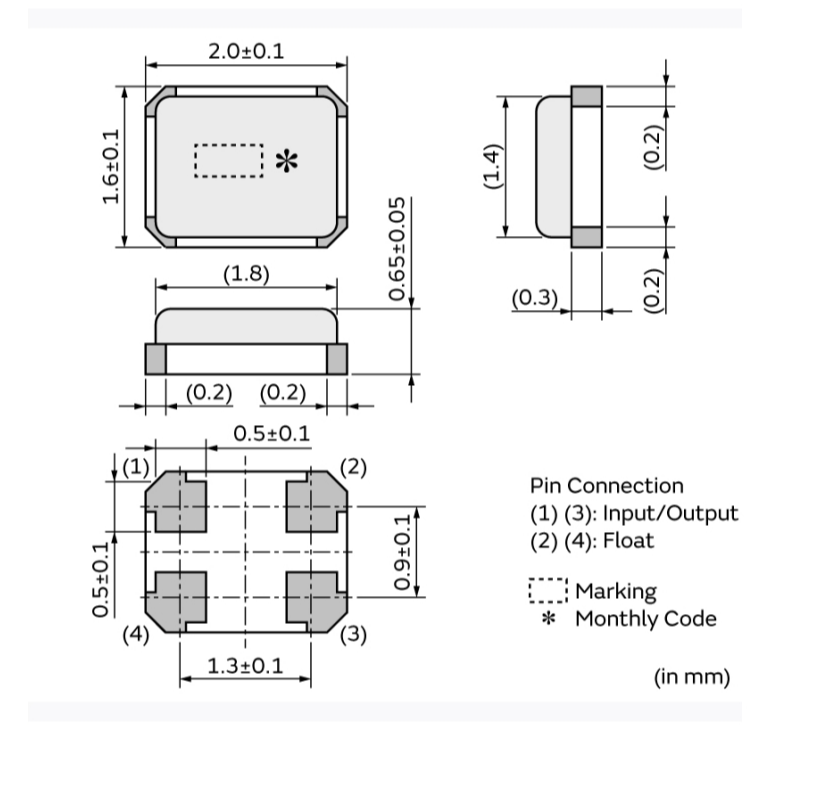

Size/Dimension尺寸 2.00mm x 1.60mm 安裝方式MountingStyle：   SurfaceMount


XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振

XRCGE20M000F3A1AR0,Murata村田晶振,耐高溫晶振
XRCGB25M000F3M00R0 Murata村田晶振 XRCGB 25 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB 27.12 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB 24 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H01R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 8pF 60 Ohms
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB 32 MHz ±10ppm ±10ppm 6pF 60 Ohms
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB 25 MHz ±35ppm ±35ppm 6pF 100 Ohms
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB 24 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB 48 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB 24 MHz ±30ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB 27.12 MHz ±40ppm ±30ppm 10pF 80 Ohms
XRCGB25M000F3M18R0 Murata村田晶振 - 25 MHz ±40ppm ±30ppm 12pF 80 Ohms
XRCGB32M000F2P01R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 8pF 100 Ohms
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB25M000F2P02R0 Murata村田晶振 - 25 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB 27.12 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB 25 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB24M000F2P01R0 Murata村田晶振 - 24 MHz ±20ppm ±20ppm 8pF 150 Ohms
XRCGB27M120F3M13R0 Murata村田晶振 - 27.12 MHz ±40ppm ±30ppm 10pF 60 Ohms
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 8pF 70 Ohms
XRCGB32M000FBH50R0 Murata村田晶振 - 32 MHz ±10ppm ±15ppm 10pF 60 Ohms
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB 24 MHz ±20ppm ±20ppm 8pF 60 Ohms
XRCGB16M000FXN00R0 Murata村田晶振 - 16 MHz ±40ppm ±40ppm 6pF 200 Ohms
XRCGB32M000F1H02R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB32M000F1H19R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 6pF 50 Ohms
XRCGB40M000F5A00R0 Murata村田晶振 - 40 MHz ±65ppm ±50ppm 6pF 70 Ohms
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB 24 MHz ±35ppm ±30ppm 6pF 120 Ohms
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB 27.12 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB 25 MHz ±35ppm ±30ppm 8pF 100 Ohms
XRCGB48M000F5A00R0 Murata村田晶振 - 48 MHz ±65ppm ±50ppm 6pF 60 Ohms
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD 25 MHz ±35ppm ±15ppm 6pF 100 Ohms
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA 20 MHz ±100ppm ±100ppm 8pF 80 Ohms
XRCGB27M120F0L00R0 Murata村田晶振 - 27.12 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB32M000F0L00R0 Murata村田晶振 - 32 MHz ±50ppm ±100ppm 6pF 100 Ohms
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±25ppm 6pF 150 Ohms
XRCGB38M400F4M00R0 Murata村田晶振 - 38.4 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB50M000F4M00R0 Murata村田晶振 - 50 MHz ±40ppm ±45ppm 6pF 65 Ohms
XRCGB32M000F3M00R0 Murata村田晶振 - 32 MHz ±40ppm ±30ppm 6pF 100 Ohms
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P02R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 10pF 100 Ohms
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB 30 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F2P02R0 Murata村田晶振 - 27.12 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB32M000F2P26R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 5pF 70 Ohms
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB 31.25 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F3G00R0 Murata村田晶振 - 27.12 MHz ±50ppm ±30ppm 6pF 150 Ohms
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB 16 MHz ±40ppm ±40ppm 8pF 200 Ohms
XRCGB27M600F2C00R0 Murata村田晶振 - 27.6 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCGB24M000F1H01R0 Murata村田晶振 - 24 MHz ±10ppm ±10ppm 8pF 80 Ohms
XRCGB26M000F1H02R0 Murata村田晶振 - 26 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB24M000F1H70R0 Murata村田晶振 - 24 MHz ±20ppm ±10ppm 6pF 80 Ohms
XRCGB32M000F1H83R0 Murata村田晶振 - 32 MHz ±15ppm ±10ppm 9pF 60 Ohms
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE 27 MHz ±35ppm ±15ppm 6pF 80 Ohms
XRCGB26M000F3A00R0 Murata村田晶振 - 26 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE 26 MHz ±35ppm ±15ppm 8pF 80 Ohms
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD 20 MHz ±45ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB 24 MHz ±35ppm ±20ppm 8pF 120 Ohms
XRCGB27M120F3P00R0 Murata村田晶振 - 27.12 MHz ±20ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB 26 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD 32 MHz ±15ppm ±10ppm 9pF 40 Ohms
