XRCGB26M000F1H89R0,日產進口晶振,2016小型貼片晶振

  • 頻率：26 MHz
  • 尺寸：2.00mm x 1.60mm
  • 應　用： XRCGB26M000F1H89R0,日產進口晶振,2016小型貼片晶振,作為一款專業晶振,具備26MHz標準頻率,頻率偏差嚴格控制在行業高標準范圍內,能為電子設備提供精準且持續的時鐘信號支持.


XRCGB26M000F1H89R0,日產進口晶振,2016小型貼片晶振

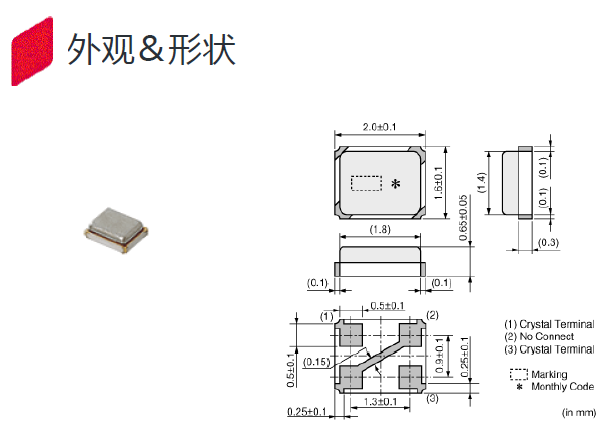

采用業界通用的2016石英貼片晶體封裝規格(即長2.0mm×寬1.6mm×高0.8mm,具體高度以實物為準),相比傳統3225封裝(3.2mm×2.5mm)的晶振,在PCB板上占用的平面空間減少約45%,立體空間占用也同步降低,完美適配當前電子設備向"輕薄化,微型化,高密度集成"發展的核心趨勢.這種緊湊設計在實際應用中優勢顯著:例如在智能手表主板上,其小巧尺寸可與微型電池,觸控芯片等元器件靈活搭配,為表盤變薄,續航提升留出更多設計空間,在微型傳感器模組(如環境監測傳感器,智能可穿戴設備晶振生理監測模塊)中,能輕松嵌入狹小的外殼內,無需為晶振單獨預留過大安裝區域,同時,貼片式結構支持自動化SMT貼片工藝,可與其他元器件同步焊接,大幅提升電子設備的生產效率,為產品外觀設計和內部結構布局提供雙重靈活性.


XRCGB26M000F1H89R0,日產進口晶振,2016小型貼片晶振
原廠型號 Originalmodel： XRCGB26M000F1H89R0 品牌brand： Murata村田晶振
品牌brand： 村田諧振器 ESR（等效串聯電阻）Resistance) 60 Ohms
型號名稱 Modelname： XRCGB 溫度OperatingTemperature -30°C~85°C
Type系列： MHz Crystal 腳位Termination： 4pad
頻率 frequency： 26 MHz 封裝類型PackageType： 4-smd
FrequencyStability頻率穩定度 ±10ppm 高度PackageHeight： 0.70mm
frequencytolerance頻率容差 ±10ppm 最小包裝數MPQ： 3000
Loadcapacitance  負載電容 5pF 包裝Packaging：  TapeandReel
Size/Dimension尺寸 2.00mm x 1.60mm 安裝方式MountingStyle：   SurfaceMount


XRCGB26M000F1H89R0,日產進口晶振,2016小型貼片晶振

XRCGB26M000F1H89R0,日產進口晶振,2016小型貼片晶振
XRCGB25M000F3M00R0 Murata村田晶振 XRCGB 25 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M00R0 Murata村田晶振 XRCGB 27.12 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F3M00R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2P00R0 Murata村田晶振 XRCGB 24 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H01R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 8pF 60 Ohms
XRCGB32M000F1H00R0 Murata村田晶振 XRCGB 32 MHz ±10ppm ±10ppm 6pF 60 Ohms
XRCGB25M000F3A00R0 Murata村田晶振 XRCGB 25 MHz ±35ppm ±35ppm 6pF 100 Ohms
XRCGB24M000F0L00R0 Murata村田晶振 XRCGB 24 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB48M000F4M00R0 Murata村田晶振 XRCGB 48 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB24M000F3N00R0 Murata村田晶振 XRCGB 24 MHz ±30ppm ±30ppm 6pF 150 Ohms
XRCGB27M120F3M10R0 Murata村田晶振 XRCGB 27.12 MHz ±40ppm ±30ppm 10pF 80 Ohms
XRCGB25M000F3M18R0 Murata村田晶振 - 25 MHz ±40ppm ±30ppm 12pF 80 Ohms
XRCGB32M000F2P01R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 8pF 100 Ohms
XRCGB32M000F2P00R0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB25M000F2P02R0 Murata村田晶振 - 25 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB27M120F2P00R0 Murata村田晶振 XRCGB 27.12 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB25M000F2P00R0 Murata村田晶振 XRCGB 25 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB24M000F2P01R0 Murata村田晶振 - 24 MHz ±20ppm ±20ppm 8pF 150 Ohms
XRCGB27M120F3M13R0 Murata村田晶振 - 27.12 MHz ±40ppm ±30ppm 10pF 60 Ohms
XRCGB32M000F2P2CR0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 8pF 70 Ohms
XRCGB32M000FBH50R0 Murata村田晶振 - 32 MHz ±10ppm ±15ppm 10pF 60 Ohms
XRCGB24M000F2P91R0 Murata村田晶振 XRCGB 24 MHz ±20ppm ±20ppm 8pF 60 Ohms
XRCGB16M000FXN00R0 Murata村田晶振 - 16 MHz ±40ppm ±40ppm 6pF 200 Ohms
XRCGB32M000F1H02R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB32M000F1H19R0 Murata村田晶振 - 32 MHz ±10ppm ±10ppm 6pF 50 Ohms
XRCGB40M000F5A00R0 Murata村田晶振 - 40 MHz ±65ppm ±50ppm 6pF 70 Ohms
XRCGB24M000F3A00R0 Murata村田晶振 XRCGB 24 MHz ±35ppm ±30ppm 6pF 120 Ohms
XRCGB27M120F3A00R0 Murata村田晶振 XRCGB 27.12 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGB25M000F3A01R0 Murata村田晶振 XRCGB 25 MHz ±35ppm ±30ppm 8pF 100 Ohms
XRCGB48M000F5A00R0 Murata村田晶振 - 48 MHz ±65ppm ±50ppm 6pF 60 Ohms
XRCGE25M000FBA1AR0 Murata村田晶振 XRCFD 25 MHz ±35ppm ±15ppm 6pF 100 Ohms
XRCHA20M000F0A01R0 Murata村田晶振 XRCHA 20 MHz ±100ppm ±100ppm 8pF 80 Ohms
XRCGB27M120F0L00R0 Murata村田晶振 - 27.12 MHz ±50ppm ±100ppm 6pF 150 Ohms
XRCGB32M000F0L00R0 Murata村田晶振 - 32 MHz ±50ppm ±100ppm 6pF 100 Ohms
XRCGB24M000FAN00R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±25ppm 6pF 150 Ohms
XRCGB38M400F4M00R0 Murata村田晶振 - 38.4 MHz ±40ppm ±45ppm 6pF 100 Ohms
XRCGB50M000F4M00R0 Murata村田晶振 - 50 MHz ±40ppm ±45ppm 6pF 65 Ohms
XRCGB32M000F3M00R0 Murata村田晶振 - 32 MHz ±40ppm ±30ppm 6pF 100 Ohms
XRCGB24M000F3M13R0 Murata村田晶振 XRCGB 24 MHz ±40ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P02R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 10pF 100 Ohms
XRCGB30M000F2P00R0 Murata村田晶振 XRCGB 30 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F2P02R0 Murata村田晶振 - 27.12 MHz ±20ppm ±20ppm 10pF 150 Ohms
XRCGB32M000F2P26R0 Murata村田晶振 - 32 MHz ±20ppm ±20ppm 5pF 70 Ohms
XRCGB31M250F2P00R0 Murata村田晶振 XRCGB 31.25 MHz ±20ppm ±20ppm 6pF 100 Ohms
XRCGB27M120F3G00R0 Murata村田晶振 - 27.12 MHz ±50ppm ±30ppm 6pF 150 Ohms
XRCGB16M000FXN22R0 Murata村田晶振 XRCGB 16 MHz ±40ppm ±40ppm 8pF 200 Ohms
XRCGB27M600F2C00R0 Murata村田晶振 - 27.6 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCGB24M000F1H01R0 Murata村田晶振 - 24 MHz ±10ppm ±10ppm 8pF 80 Ohms
XRCGB26M000F1H02R0 Murata村田晶振 - 26 MHz ±10ppm ±10ppm 10pF 60 Ohms
XRCGB24M000F1H70R0 Murata村田晶振 - 24 MHz ±20ppm ±10ppm 6pF 80 Ohms
XRCGB32M000F1H83R0 Murata村田晶振 - 32 MHz ±15ppm ±10ppm 9pF 60 Ohms
XRCGE27M000FBA1AR0 Murata村田晶振 XRCGE 27 MHz ±35ppm ±15ppm 6pF 80 Ohms
XRCGB26M000F3A00R0 Murata村田晶振 - 26 MHz ±35ppm ±30ppm 6pF 80 Ohms
XRCGE26M000FBA1BR0 Murata村田晶振 XRCGE 26 MHz ±35ppm ±15ppm 8pF 80 Ohms
XRCGE20M000F3A1AR0 Murata村田晶振 XRCFD 20 MHz ±45ppm ±30ppm 6pF 150 Ohms
XRCGB24M000F2A01R0 Murata村田晶振 XRCGB 24 MHz ±35ppm ±20ppm 8pF 120 Ohms
XRCGB27M120F3P00R0 Murata村田晶振 - 27.12 MHz ±20ppm ±30ppm 6pF 150 Ohms
XRCGB32M000F2P55R0 Murata村田晶振 XRCGB 32 MHz ±20ppm ±20ppm 6pF 80 Ohms
XRCPB26M000F2P00R0 Murata村田晶振 XRCPB 26 MHz ±20ppm ±20ppm 6pF 150 Ohms
XRCGB32M000F1H18R0 Murata村田晶振 XRCFD 32 MHz ±15ppm ±10ppm 9pF 40 Ohms
