更多>>FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四腳貼片晶振
- 頻率：12Mhz
- 尺寸：5032mm
- 應 用： FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四腳貼片晶振,12MHz標稱頻率搭配基諧工作模式,信號輸出穩定,頻率容差與穩定性均達±30ppm,負載電容20pF,能為電子設備提供精準的時鐘基準.
-
.png)
.png)

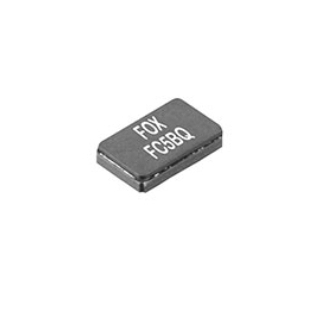

FC5BQCCMC12.0-T1,FOX福克斯晶振,5032四腳貼片晶振

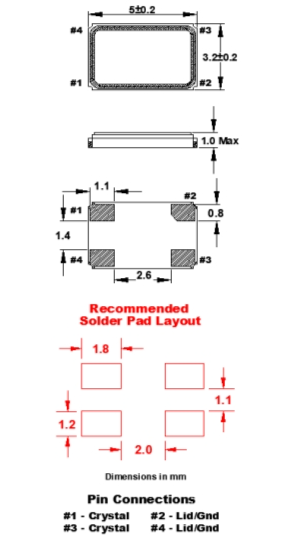

FC5BQCCMC12.0-T1是美國FOX?？怂咕д?/span>旗下一款高性能5032封裝四腳貼片晶振,核心頻率精準定格為12MHz,搭載基諧工作模式,確保信號輸出的穩定性與純凈度.產品具備±30ppm的高頻頻率容差與穩定性,搭配20pF標準負載電容及80Ohms等效串聯電阻,能適配多數電子設備的時鐘信號需求.采用無鉛表面貼裝工藝,5.00mm×3.20mm的小巧尺寸可有效節省PCB板空間,且符合RoHS環保認證,工作溫度覆蓋0℃~70℃常規工況,廣泛適用于消費電子,工業控制等通用領域.
.png)
.png)
FC5BQCCMC12.0-T1,FOX?？怂咕д?5032四腳貼片晶振
| 原廠型號 Originalmodel： | FC5BQCCMC12.0-T1 | 品牌brand： | FOX |
| 品牌brand： | FOX | 高度PackageHeight： | 1.0mm |
| 型號名稱 Modelname： | FC5BQ | 溫度OperatingTemperature | 0+70℃ |
| Type系列： | MHz Crystal | 腳位Termination： | 4-pad |
| 頻率 frequency： | 12M | 封裝類型PackageType： | 4-smd |
| frequencytolerance頻率容差 | ±30pp | 最小包裝數MPQ： | 1000 |
| Loadcapacitance 負載電容 | 20PF | Packaging 包裝 | TapeandReel |
| Size/Dimension尺寸 | 5032貼片晶振 | 安裝方式 Installation： | Surfacemount |
.png)
.png)
FC5BQCCMC12.0-T1,FOX?？怂咕д?5032四腳貼片晶振
FC5BQCCMC12.0-T1,FOX?？怂咕д?5032四腳貼片晶振
| FC0BSFEEN23A99675-T2 | Fox?？怂咕д?/span> | FC0BS | 1.6mm | 1.2mm | 0.45mm | -20°C ~ 85°C |
| FC0BSFEEN23A99675-T3 | Fox?？怂咕д?/span> | FC0BS | 1.6mm | 1.2mm | 0.45mm | -20°C ~ 85°C |
| FC1BACBEI20.0-T3 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 1mm | -40°C ~ 125°C |
| FC1BAEBDI16.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBDI20.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBDI24.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBDI25.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | -40°C ~ 125°C | |
| FC1BAEBDI40.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI16.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI20.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI24.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI25.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBEI40.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI16.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI20.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI24.0-T1 | Fox福克斯晶振 | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI25.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BAEBGI40.0-T1 | Fox?？怂咕д?/span> | FC1BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC1BQCCEK27.12-1 | Fox福克斯晶振 | FC1BQ | 2mm | 1.6mm | 0.7mm | -30°C ~ 85°C |
| FC1BSCBEM27.12-T3 | Fox?？怂咕д?/span> | FC1BS | 2mm | 1.6mm | 0.45mm | -40°C ~ 85°C |
| FC1BSCCEM16.0-T3 | Fox?？怂咕д?/span> | FC1BS | 2mm | 1.6mm | 0.45mm | -40°C ~ 85°C |
| FC1BSHFEM32.0-T3 | Fox?？怂咕д?/span> | FC1BS | 2mm | 1.6mm | 0.45mm | -40°C ~ 85°C |
| FC1BSHHVK50.0-1-T3 | Fox福克斯晶振 | FC1BS | 2mm | 1.6mm | 0.45mm | -30°C ~ 85°C |
| FC2BACBEI16.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 1mm | -40°C ~ 12°C |
| FC2BACBEI16.0-T3 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 1mm | -40°C ~ 12°C |
| FC2BAEBDI12.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI16.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI20.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI24.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI25.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBDI40.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI12.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI16.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI20.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI24.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI25.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBEI40.0-T1 | Fox福克斯晶振 | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BAEBGI25.0-T1 | Fox?？怂咕д?/span> | FC2BA | 2.5mm | 2mm | 0.65mm | -40°C ~ 125°C |
| FC2BSBBMM16.0-T1 | Fox福克斯晶振 | FC2BS | 2.5mm | 2mm | 0.45mm | -40°C ~ 85°C |
| FC2BSBBMM16.0-T3 | Fox?？怂咕д?/span> | FC2BS | 2.5mm | 2mm | 0.45mm | -40°C ~ 85°C |
| FC3BABBKM20.0-T3 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 85°C |
| FC3BACAGI16.0-T3 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 12°C |
| FC3BACALI16.0-T3 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 12°C |
| FC3BACBDI16.0-T3 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 12°C |
| FC3BACCGM20.0-T3 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 85°C |
| FC3BACCLP12.0-T3 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 1mm | -40°C ~ 10°C |
| FC3BAEBDI12.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI16.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI20.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI24.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI25.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI40.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBDI8.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI12.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI24.0-T1 | Fox福克斯晶振 | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI25.0-T1 | Fox?？怂咕д?/span> | FC3BA | 3.2mm | 2.5mm | 0.7mm | -40°C ~ 125°C |
| FC3BAEBGI40.0-T1 | Fox?？怂咕д?/span> | FC3BA | 2mm | 1.6mm | 0.55mm | -40°C ~ 125°C |
| FC3BQBBDM20.0-T3 | Fox?？怂咕д?/span> | FC3BQ | 3.2mm | 2.5mm | 0.6mm | -40°C ~ 85°C |
| FC3BQBBME12.0-T3 | Fox?？怂咕д?/span> | FC3BQ | 3.2mm | 2.5mm | 0.6mm | -10°C ~ 70°C |
| FC3BQBBME16.0-T1 | Fox?？怂咕д?/span> | FC3BQ | 3.2mm | 2.5mm | 0.6mm | -10°C ~ 70°C |
